Investigating the vCAC 5.2 mgmtContext

[UPDATE 2014-02-16] For an introduction of vCAC other models have have a look at Investigating vCAC 5.2 Models.

One of the cool features of vCAC is the ability to hook into the various steps of the provisioning process via scripting – especially with Windows PowerShell. As vCAC is built on top of ,NET it is really easy to use these assemblies via PoSH – especially the assembly for the repository. If you ever used the vCAC Workflow Designer for one of the pre-defined “WFStub” workflows you are already using the assembly that holds most of the repository: “mgmtContext”:

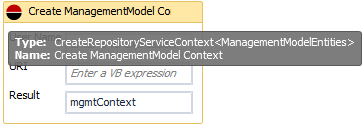

vCAC Workflow Designer mgmtContext

Ever wondered what that “mgmtContext” really is and where does it come from? The ManagementModel actually resides within the “DynamicOps.ManagementModel.Client.dll” which you can also load manually within PoSH:

Add-Type -Path ("{0}\VMware\vCAC\Server\DynamicOps.ManagementModel.Client.dll" -f ${ENV:ProgramFiles(x86)})

From there you can use the object “DynamicOps.ManagementModel.ManagementModelEntities” and its methods and properties to your needs. For example you could use it to update custom properties on a virtual machine or lookup information from agents and endpoints.

Problematic about this is that there is actually not much information on what the methods are and how to use them. However you can get a first look at it by browsing the ODATA REST interface via LINQPad:

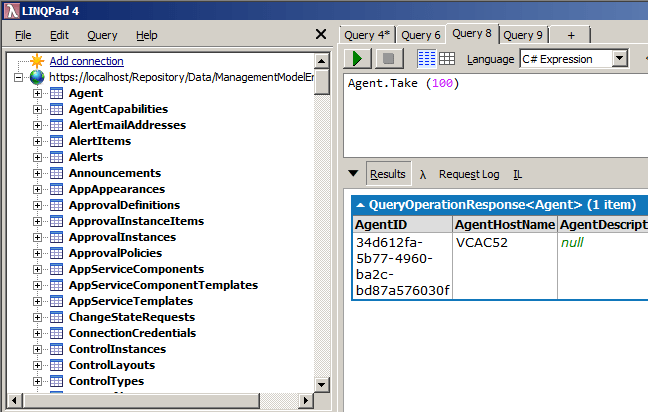

vCAC reposiroty view via LINQPad

vCAC reposiroty view via LINQPad

But this does not tell you how to use it from PoSH and what methods and properties these objects have.  But there is help: By looking up the contructor of the MangementModelEntities object as desribed in “Get-Constructor Fun” we create a new object and are now able to list its members and properties:

Get-Constructor DynamicOps.ManagementModel.ManagementModelEntities
$m = New-Object -Type DynamicOps.ManagementModel.ManagementModelEntities -ArgumentList "https://localhost/Repository/Data/ManagementModelEntities.svc"
$m|gm
   TypeName: DynamicOps.ManagementModel.ManagementModelEntities

Name                                    MemberType Definition
----                                    ---------- ----------
ReadingEntity                           Event      System.EventHandler`1[System.Data.Services.Client.ReadingWritingEntityEventArgs]...
SendingRequest                          Event      System.EventHandler`1[System.Data.Services.Client.SendingRequestEventArgs] Sendi...
WritingEntity                           Event      System.EventHandler`1[System.Data.Services.Client.ReadingWritingEntityEventArgs]...
AddLink                                 Method     void AddLink[T](T source, System.Linq.Expressions.Expression[System.Func[T,Syste...
AddMultipleLicenseKeyRequest            Method     string AddMultipleLicenseKeyRequest(string serialNumbers)
AddObject                               Method     void AddObject(string entitySetName, System.Object entity)
AddRelatedObject                        Method     void AddRelatedObject(System.Object source, string sourceProperty, System.Object...
AddToAgent                              Method     void AddToAgent(DynamicOps.ManagementModel.Agent value)
AddToAgentCapabilities                  Method     void AddToAgentCapabilities(DynamicOps.ManagementModel.AgentCapability value)
AddToAlertEmailAddresses                Method     void AddToAlertEmailAddresses(DynamicOps.ManagementModel.AlertEmailAddress value)
AddToAlertItems                         Method     void AddToAlertItems(DynamicOps.ManagementModel.AlertItem value)
AddToAlerts                             Method     void AddToAlerts(DynamicOps.ManagementModel.Alert value)
AddToAnnouncements                      Method     void AddToAnnouncements(DynamicOps.ManagementModel.Announcement value)
AddToAppAppearances                     Method     void AddToAppAppearances(DynamicOps.ManagementModel.AppAppearance value)
AddToApprovalDefinitions                Method     void AddToApprovalDefinitions(DynamicOps.ManagementModel.ApprovalDefinition value)
AddToApprovalInstanceItems              Method     void AddToApprovalInstanceItems(DynamicOps.ManagementModel.ApprovalInstanceItem ...
AddToApprovalInstances                  Method     void AddToApprovalInstances(DynamicOps.ManagementModel.ApprovalInstance value)
AddToApprovalPolicies                   Method     void AddToApprovalPolicies(DynamicOps.ManagementModel.ApprovalPolicy value)
AddToAppServiceComponents               Method     void AddToAppServiceComponents(DynamicOps.ManagementModel.AppServiceComponent va...
AddToAppServiceComponentTemplates       Method     void AddToAppServiceComponentTemplates(DynamicOps.ManagementModel.AppServiceComp...
AddToAppServiceTemplates                Method     void AddToAppServiceTemplates(DynamicOps.ManagementModel.AppServiceTemplate value)
AddToChangeStateRequests                Method     void AddToChangeStateRequests(DynamicOps.ManagementModel.ChangeStateRequest value)
AddToConnectionCredentials              Method     void AddToConnectionCredentials(DynamicOps.ManagementModel.ConnectionCredential ...
AddToControlInstances                   Method     void AddToControlInstances(DynamicOps.ManagementModel.ControlInstance value)
AddToControlLayouts                     Method     void AddToControlLayouts(DynamicOps.ManagementModel.ControlLayout value)
AddToControlTypes                       Method     void AddToControlTypes(DynamicOps.ManagementModel.ControlType value)
AddToCostProfiles                       Method     void AddToCostProfiles(DynamicOps.ManagementModel.CostProfile value)
AddToDataCollectionStatuses             Method     void AddToDataCollectionStatuses(DynamicOps.ManagementModel.DataCollectionStatus...
AddToDisplayIcons                       Method     void AddToDisplayIcons(DynamicOps.ManagementModel.DisplayIcon value)
AddToEmailProfiles                      Method     void AddToEmailProfiles(DynamicOps.ManagementModel.EmailProfile value)
AddToEndpointUsageHistory               Method     void AddToEndpointUsageHistory(DynamicOps.ManagementModel.EndpointUsageHistory v...
AddToEnterpriseAdminGroups              Method     void AddToEnterpriseAdminGroups(DynamicOps.ManagementModel.EnterpriseAdminGroup ...
AddToFiles                              Method     void AddToFiles(DynamicOps.ManagementModel.File value)
AddToFilterSpecGroups                   Method     void AddToFilterSpecGroups(DynamicOps.ManagementModel.FilterSpecGroup value)
AddToFilterSpecs                        Method     void AddToFilterSpecs(DynamicOps.ManagementModel.FilterSpec value)
AddToGlobalProfileProperties            Method     void AddToGlobalProfileProperties(DynamicOps.ManagementModel.GlobalProfileProper...
AddToGlobalProfiles                     Method     void AddToGlobalProfiles(DynamicOps.ManagementModel.GlobalProfile value)
AddToHostDiscoveries                    Method     void AddToHostDiscoveries(DynamicOps.ManagementModel.HostDiscovery value)
AddToHostExts                           Method     void AddToHostExts(DynamicOps.ManagementModel.HostExt value)
AddToHostNamePrefixes                   Method     void AddToHostNamePrefixes(DynamicOps.ManagementModel.HostNamePrefix value)
AddToHostNics                           Method     void AddToHostNics(DynamicOps.ManagementModel.HostNic value)
AddToHostNicToReservations              Method     void AddToHostNicToReservations(DynamicOps.ManagementModel.HostNicToReservation ...
AddToHostProperties                     Method     void AddToHostProperties(DynamicOps.ManagementModel.HostProperty value)
AddToHostReservationPolicies            Method     void AddToHostReservationPolicies(DynamicOps.ManagementModel.HostReservationPoli...
AddToHostReservationProperties          Method     void AddToHostReservationProperties(DynamicOps.ManagementModel.HostReservationPr...
AddToHostReservations                   Method     void AddToHostReservations(DynamicOps.ManagementModel.HostReservation value)
AddToHostReservationStats               Method     void AddToHostReservationStats(DynamicOps.ManagementModel.HostReservationStats v...
AddToHostReservationToStorages          Method     void AddToHostReservationToStorages(DynamicOps.ManagementModel.HostReservationTo...
AddToHostReservationToStorageStats      Method     void AddToHostReservationToStorageStats(DynamicOps.ManagementModel.HostReservati...
AddToHosts                              Method     void AddToHosts(DynamicOps.ManagementModel.Host value)
AddToHostStorageReservationPolicies     Method     void AddToHostStorageReservationPolicies(DynamicOps.ManagementModel.HostStorageR...
AddToHostToIsoes                        Method     void AddToHostToIsoes(DynamicOps.ManagementModel.HostToIso value)
AddToHostToStorage                      Method     void AddToHostToStorage(DynamicOps.ManagementModel.HostToStorage value)
AddToInterfaceTypes                     Method     void AddToInterfaceTypes(DynamicOps.ManagementModel.InterfaceType value)
AddToIsoes                              Method     void AddToIsoes(DynamicOps.ManagementModel.Iso value)
AddToLicenseKeys                        Method     void AddToLicenseKeys(DynamicOps.ManagementModel.LicenseKey value)
AddToMachineCostViews                   Method     void AddToMachineCostViews(DynamicOps.ManagementModel.MachineCostView value)
AddToMachineOperations                  Method     void AddToMachineOperations(DynamicOps.ManagementModel.MachineOperation value)
AddToMachineStateHistories              Method     void AddToMachineStateHistories(DynamicOps.ManagementModel.MachineStateHistory v...
AddToMachineUsageByStates               Method     void AddToMachineUsageByStates(DynamicOps.ManagementModel.MachineUsageByState va...
AddToMachineUsageHistories              Method     void AddToMachineUsageHistories(DynamicOps.ManagementModel.MachineUsageHistory v...
AddToManagementEndpointProperties       Method     void AddToManagementEndpointProperties(DynamicOps.ManagementModel.ManagementEndp...
AddToManagementEndpoints                Method     void AddToManagementEndpoints(DynamicOps.ManagementModel.ManagementEndpoint value)
AddToPhysicalControllers                Method     void AddToPhysicalControllers(DynamicOps.ManagementModel.PhysicalController value)
AddToPhysicalMachineProperties          Method     void AddToPhysicalMachineProperties(DynamicOps.ManagementModel.PhysicalMachinePr...
AddToPhysicalMachines                   Method     void AddToPhysicalMachines(DynamicOps.ManagementModel.PhysicalMachine value)
AddToPhysicalNetworks                   Method     void AddToPhysicalNetworks(DynamicOps.ManagementModel.PhysicalNetwork value)
AddToPhysicalStorages                   Method     void AddToPhysicalStorages(DynamicOps.ManagementModel.PhysicalStorage value)
AddToPropertyAttributes                 Method     void AddToPropertyAttributes(DynamicOps.ManagementModel.PropertyAttribute value)
AddToPropertyAttributeTypes             Method     void AddToPropertyAttributeTypes(DynamicOps.ManagementModel.PropertyAttributeTyp...
AddToPropertyDefinitions                Method     void AddToPropertyDefinitions(DynamicOps.ManagementModel.PropertyDefinition value)
AddToPropertyDefinitionSets             Method     void AddToPropertyDefinitionSets(DynamicOps.ManagementModel.PropertyDefinitionSe...
AddToPropertyGroups                     Method     void AddToPropertyGroups(DynamicOps.ManagementModel.PropertyGroup value)
AddToPropertySetXml                     Method     void AddToPropertySetXml(DynamicOps.ManagementModel.PropertySetXml value)
AddToPropertyValues                     Method     void AddToPropertyValues(DynamicOps.ManagementModel.PropertyValue value)
AddToProvisioningGroupProperties        Method     void AddToProvisioningGroupProperties(DynamicOps.ManagementModel.ProvisioningGro...
AddToProvisioningGroups                 Method     void AddToProvisioningGroups(DynamicOps.ManagementModel.ProvisioningGroup value)
AddToRequestAudits                      Method     void AddToRequestAudits(DynamicOps.ManagementModel.RequestAudit value)
AddToRequestProperties                  Method     void AddToRequestProperties(DynamicOps.ManagementModel.RequestProperty value)
AddToRequests                           Method     void AddToRequests(DynamicOps.ManagementModel.Request value)
AddToResourcePools                      Method     void AddToResourcePools(DynamicOps.ManagementModel.ResourcePool value)
AddToStateOperationDefinitionProperties Method     void AddToStateOperationDefinitionProperties(DynamicOps.ManagementModel.StateOpe...
AddToStateOperationDefinitions          Method     void AddToStateOperationDefinitions(DynamicOps.ManagementModel.StateOperationDef...
AddToStateOperationExecutionStates      Method     void AddToStateOperationExecutionStates(DynamicOps.ManagementModel.StateOperatio...
AddToStateOperationProperties           Method     void AddToStateOperationProperties(DynamicOps.ManagementModel.StateOperationProp...
AddToStateOperations                    Method     void AddToStateOperations(DynamicOps.ManagementModel.StateOperation value)
AddToStaticIPv4Addresses                Method     void AddToStaticIPv4Addresses(DynamicOps.ManagementModel.StaticIPv4Address value)
AddToStaticIPv4NetworkProfiles          Method     void AddToStaticIPv4NetworkProfiles(DynamicOps.ManagementModel.StaticIPv4Network...
AddToStaticIPv4Ranges                   Method     void AddToStaticIPv4Ranges(DynamicOps.ManagementModel.StaticIPv4Range value)
AddToStorage                            Method     void AddToStorage(DynamicOps.ManagementModel.Storage value)
AddToStorageCostProfiles                Method     void AddToStorageCostProfiles(DynamicOps.ManagementModel.StorageCostProfile value)
AddToUICustomizations                   Method     void AddToUICustomizations(DynamicOps.ManagementModel.UICustomization value)
AddToUserFilterExclusions               Method     void AddToUserFilterExclusions(DynamicOps.ManagementModel.UserFilterExclusion va...
AddToUserFilters                        Method     void AddToUserFilters(DynamicOps.ManagementModel.UserFilter value)
AddToUserLogs                           Method     void AddToUserLogs(DynamicOps.ManagementModel.UserLog value)
AddToUsers                              Method     void AddToUsers(DynamicOps.ManagementModel.User value)
AddToVirtualMachineExts                 Method     void AddToVirtualMachineExts(DynamicOps.ManagementModel.VirtualMachineExt value)
AddToVirtualMachineHistories            Method     void AddToVirtualMachineHistories(DynamicOps.ManagementModel.VirtualMachineHisto...
AddToVirtualMachineHistoryProperties    Method     void AddToVirtualMachineHistoryProperties(DynamicOps.ManagementModel.VirtualMach...
AddToVirtualMachineProperties           Method     void AddToVirtualMachineProperties(DynamicOps.ManagementModel.VirtualMachineProp...
AddToVirtualMachines                    Method     void AddToVirtualMachines(DynamicOps.ManagementModel.VirtualMachine value)
AddToVirtualMachineTemplateProperties   Method     void AddToVirtualMachineTemplateProperties(DynamicOps.ManagementModel.VirtualMac...
AddToVirtualMachineTemplates            Method     void AddToVirtualMachineTemplates(DynamicOps.ManagementModel.VirtualMachineTempl...
AddToVMDiskHardwares                    Method     void AddToVMDiskHardwares(DynamicOps.ManagementModel.VMDiskHardware value)
AddToVMPerformances                     Method     void AddToVMPerformances(DynamicOps.ManagementModel.VMPerformance value)
AddToVMSnapshots                        Method     void AddToVMSnapshots(DynamicOps.ManagementModel.VMSnapshot value)
AddToVMToNetwork                        Method     void AddToVMToNetwork(DynamicOps.ManagementModel.VMToNetwork value)
AddToWorkflowInfoes                     Method     void AddToWorkflowInfoes(DynamicOps.ManagementModel.WorkflowInfo value)
AddToWorkflowMaps                       Method     void AddToWorkflowMaps(DynamicOps.ManagementModel.WorkflowMap value)
AddToWorkflowOperationArguments         Method     void AddToWorkflowOperationArguments(DynamicOps.ManagementModel.WorkflowOperatio...
AddToWorkflowOperations                 Method     void AddToWorkflowOperations(DynamicOps.ManagementModel.WorkflowOperation value)
AddToWorkflowStateEvents                Method     void AddToWorkflowStateEvents(DynamicOps.ManagementModel.WorkflowStateEvent value)
AddToWorkItem                           Method     void AddToWorkItem(DynamicOps.ManagementModel.WorkItem value)
AllocateReservationRequest              Method     DynamicOps.ManagementModel.Common.Requests.AllocateRequest AllocateReservationRe...
AttachIfNeeded                          Method     void AttachIfNeeded(string entitySetName, System.Object entity)
AttachLink                              Method     void AttachLink(System.Object source, string sourceProperty, System.Object target)
AttachTo                                Method     void AttachTo(string entitySetName, System.Object entity), void AttachTo(string ...
BeginExecute                            Method     System.IAsyncResult BeginExecute[TElement](uri requestUri, System.AsyncCallback ...
BeginExecuteBatch                       Method     System.IAsyncResult BeginExecuteBatch(System.AsyncCallback callback, System.Obje...
BeginGetReadStream                      Method     System.IAsyncResult BeginGetReadStream(System.Object entity, System.Data.Service...
BeginLoadProperty                       Method     System.IAsyncResult BeginLoadProperty(System.Object entity, string propertyName,...
BeginSaveChanges                        Method     System.IAsyncResult BeginSaveChanges(System.AsyncCallback callback, System.Objec...
CancelRequest                           Method     void CancelRequest(System.IAsyncResult asyncResult)
CheckLicenseQuotaRequest                Method     bool CheckLicenseQuotaRequest(byte templateType)
CheckTemplateIsLicensedRequest          Method     bool CheckTemplateIsLicensedRequest(guid templateId)
CreateDataServiceQuery                  Method     System.Data.Services.Client.DataServiceQuery[T] CreateDataServiceQuery[T](string...
CreateQuery                             Method     DynamicOps.Repository.RepositoryServiceQuery[T] CreateQuery[T](string entitySetN...
DeleteLink                              Method     void DeleteLink[T](T source, System.Linq.Expressions.Expression[System.Func[T,Sy...
DeleteObject                            Method     void DeleteObject(System.Object entity)
Detach                                  Method     bool Detach(System.Object entity)
DetachLink                              Method     bool DetachLink(System.Object source, string sourceProperty, System.Object target)
EndExecute                              Method     System.Collections.Generic.IEnumerable[TElement] EndExecute[TElement](System.IAs...
EndExecuteBatch                         Method     System.Data.Services.Client.DataServiceResponse EndExecuteBatch(System.IAsyncRes...
EndGetReadStream                        Method     System.Data.Services.Client.DataServiceStreamResponse EndGetReadStream(System.IA...
EndLoadProperty                         Method     System.Data.Services.Client.QueryOperationResponse EndLoadProperty(System.IAsync...
EndSaveChanges                          Method     System.Data.Services.Client.DataServiceResponse EndSaveChanges(System.IAsyncResu...
Equals                                  Method     bool Equals(System.Object obj)
Execute                                 Method     System.Collections.Generic.IEnumerable[TElement] Execute[TElement](uri requestUr...
ExecuteBatch                            Method     System.Data.Services.Client.DataServiceResponse ExecuteBatch(Params System.Data....
GenerateMachineName                     Method     string GenerateMachineName(DynamicOps.ManagementModel.Common.Requests.MachineNam...
GetEntityDescriptor                     Method     System.Data.Services.Client.EntityDescriptor GetEntityDescriptor(System.Object e...
GetEntitySetFromType                    Method     string GetEntitySetFromType(type type)
GetHashCode                             Method     int GetHashCode()
GetLinkDescriptor                       Method     System.Data.Services.Client.LinkDescriptor GetLinkDescriptor(System.Object sourc...
GetMetadataUri                          Method     uri GetMetadataUri()
GetReadStream                           Method     System.Data.Services.Client.DataServiceStreamResponse GetReadStream(System.Objec...
GetReadStreamUri                        Method     uri GetReadStreamUri(System.Object entity)
GetType                                 Method     type GetType()
LoadProperty                            Method     System.Data.Services.Client.QueryOperationResponse LoadProperty(System.Object en...
SaveChanges                             Method     System.Data.Services.Client.DataServiceResponse SaveChanges(), System.Data.Servi...
SetLink                                 Method     void SetLink[T](T source, System.Linq.Expressions.Expression[System.Func[T,Syste...
SetSaveStream                           Method     void SetSaveStream(System.Object entity, System.IO.Stream stream, bool closeStre...
SubmitVirtualMachineRequest             Method     guid SubmitVirtualMachineRequest(guid templateId, guid groupId, string requestin...
ToString                                Method     string ToString()
TryGetEntity                            Method     bool TryGetEntity[TEntity](uri identity, [ref] TEntity entity)
TryGetUri                               Method     bool TryGetUri(System.Object entity, [ref] uri identity)
UpdateObject                            Method     void UpdateObject(System.Object entity)
ValidateLicenseKeyRequest               Method     DynamicOps.ManagementModel.LicenseKey ValidateLicenseKeyRequest(DynamicOps.Manag...
Agent                                   Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Agent] A...
AgentCapabilities                       Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.AgentCap...
AlertEmailAddresses                     Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.AlertEma...
AlertItems                              Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.AlertIte...
Alerts                                  Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Alert] A...
Announcements                           Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Announce...
AppAppearances                          Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.AppAppea...
ApplyingChanges                         Property   bool ApplyingChanges {get;}
ApprovalDefinitions                     Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Approval...
ApprovalInstanceItems                   Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Approval...
ApprovalInstances                       Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Approval...
ApprovalPolicies                        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Approval...
AppServiceComponents                    Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.AppServi...
AppServiceComponentTemplates            Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.AppServi...
AppServiceTemplates                     Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.AppServi...
BaseUri                                 Property   uri BaseUri {get;}
ChangeStateRequests                     Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.ChangeSt...
ConnectionCredentials                   Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Connecti...
ControlInstances                        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.ControlI...
ControlLayouts                          Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.ControlL...
ControlTypes                            Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.ControlT...
CostProfiles                            Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.CostProf...
Credentials                             Property   System.Net.ICredentials Credentials {get;set;}
DataCollectionStatuses                  Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.DataColl...
DataNamespace                           Property   string DataNamespace {get;set;}
DisplayIcons                            Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.DisplayI...
EmailProfiles                           Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.EmailPro...
EndpointUsageHistory                    Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Endpoint...
EnterpriseAdminGroups                   Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Enterpri...
Entities                                Property   System.Collections.ObjectModel.ReadOnlyCollection[System.Data.Services.Client.En...
Files                                   Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.File] Fi...
FilterSpecGroups                        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.FilterSp...
FilterSpecs                             Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.FilterSp...
GlobalProfileProperties                 Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.GlobalPr...
GlobalProfiles                          Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.GlobalPr...
HostDiscoveries                         Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostDisc...
HostExts                                Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostExt]...
HostNamePrefixes                        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostName...
HostNics                                Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostNic]...
HostNicToReservations                   Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostNicT...
HostProperties                          Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostProp...
HostReservationPolicies                 Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostRese...
HostReservationProperties               Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostRese...
HostReservations                        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostRese...
HostReservationStats                    Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostRese...
HostReservationToStorages               Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostRese...
HostReservationToStorageStats           Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostRese...
Hosts                                   Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Host] Ho...
HostStorageReservationPolicies          Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostStor...
HostToIsoes                             Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostToIs...
HostToStorage                           Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.HostToSt...
IgnoreMissingProperties                 Property   bool IgnoreMissingProperties {get;set;}
IgnoreResourceNotFoundException         Property   bool IgnoreResourceNotFoundException {get;set;}
InterfaceTypes                          Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Interfac...
Isoes                                   Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Iso] Iso...
LicenseKeys                             Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.LicenseK...
Links                                   Property   System.Collections.ObjectModel.ReadOnlyCollection[System.Data.Services.Client.Li...
MachineCostViews                        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.MachineC...
MachineOperations                       Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.MachineO...
MachineStateHistories                   Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.MachineS...
MachineUsageByStates                    Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.MachineU...
MachineUsageHistories                   Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.MachineU...
ManagementEndpointProperties            Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Manageme...
ManagementEndpoints                     Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Manageme...
MergeOption                             Property   System.Data.Services.Client.MergeOption MergeOption {get;set;}
PhysicalControllers                     Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Physical...
PhysicalMachineProperties               Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Physical...
PhysicalMachines                        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Physical...
PhysicalNetworks                        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Physical...
PhysicalStorages                        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Physical...
PropertyAttributes                      Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Property...
PropertyAttributeTypes                  Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Property...
PropertyDefinitions                     Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Property...
PropertyDefinitionSets                  Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Property...
PropertyGroups                          Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Property...
PropertySetXml                          Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Property...
PropertyValues                          Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Property...
ProvisioningGroupProperties             Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Provisio...
ProvisioningGroups                      Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Provisio...
RequestAudits                           Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.RequestA...
RequestProperties                       Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.RequestP...
Requests                                Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Request]...
ResolveName                             Property   System.Func[type,string] ResolveName {get;set;}
ResolveType                             Property   System.Func[string,type] ResolveType {get;set;}
ResourcePools                           Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Resource...
SaveChangesDefaultOptions               Property   System.Data.Services.Client.SaveChangesOptions SaveChangesDefaultOptions {get;set;}
StateOperationDefinitionProperties      Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.StateOpe...
StateOperationDefinitions               Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.StateOpe...
StateOperationExecutionStates           Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.StateOpe...
StateOperationProperties                Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.StateOpe...
StateOperations                         Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.StateOpe...
StaticIPv4Addresses                     Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.StaticIP...
StaticIPv4NetworkProfiles               Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.StaticIP...
StaticIPv4Ranges                        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.StaticIP...
Storage                                 Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Storage]...
StorageCostProfiles                     Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.StorageC...
Timeout                                 Property   int Timeout {get;set;}
TypeScheme                              Property   uri TypeScheme {get;set;}
UICustomizations                        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.UICustom...
UsePostTunneling                        Property   bool UsePostTunneling {get;set;}
UserFilterExclusions                    Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.UserFilt...
UserFilters                             Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.UserFilt...
UserLogs                                Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.UserLog]...
Users                                   Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.User] Us...
VirtualMachineExts                      Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.VirtualM...
VirtualMachineHistories                 Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.VirtualM...
VirtualMachineHistoryProperties         Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.VirtualM...
VirtualMachineProperties                Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.VirtualM...
VirtualMachines                         Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.VirtualM...
VirtualMachineTemplateProperties        Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.VirtualM...
VirtualMachineTemplates                 Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.VirtualM...
VMDiskHardwares                         Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.VMDiskHa...
VMPerformances                          Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.VMPerfor...
VMSnapshots                             Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.VMSnapsh...
VMToNetwork                             Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.VMToNetw...
WorkflowInfoes                          Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Workflow...
WorkflowMaps                            Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Workflow...
WorkflowOperationArguments              Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Workflow...
WorkflowOperations                      Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Workflow...
WorkflowStateEvents                     Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.Workflow...
WorkItem                                Property   DynamicOps.Repository.RepositoryServiceQuery[DynamicOps.ManagementModel.WorkItem...

With that you can use normal PoSH mechanics to investigate on the methods and properties. But make sure you first set the “Credentials” proeprty of the mgmtContext with either explicit credentials or “DefaultCredentials” of the current identity. For example save changes or update an object:

PS > $m.SaveChanges

OverloadDefinitions
-------------------
System.Data.Services.Client.DataServiceResponse SaveChanges()
System.Data.Services.Client.DataServiceResponse SaveChanges(System.Data.Services.Client.SaveChangesOptions options)

PS > [System.Data.Services.Client.SaveChangesOptions] |gm -Static -Type Properties
   TypeName: System.Data.Services.Client.SaveChangesOptions

Name            MemberType Definition
----            ---------- ----------
Batch           Property   static System.Data.Services.Client.SaveChangesOptions Batch {get;}
ContinueOnError Property   static System.Data.Services.Client.SaveChangesOptions ContinueOnError {get;}
None            Property   static System.Data.Services.Client.SaveChangesOptions None {get;}
ReplaceOnUpdate Property   static System.Data.Services.Client.SaveChangesOptions ReplaceOnUpdate {get;}

PS > $m.UpdateObject
OverloadDefinitions
-------------------
void UpdateObject(System.Object entity)

Or you can use code to add a property to a virtual machine:

PS > $m.AddToVirtualMachineProperties
OverloadDefinitions
-------------------
void AddToVirtualMachineProperties(DynamicOps.ManagementModel.VirtualMachineProperty value)

PS > get-Constructor DynamicOps.ManagementModel.VirtualMachineProperty
VirtualMachineProperty(
)

PS > get-Constructor DynamicOps.ManagementModel.VirtualMachineProperty
$p = New-Object "DynamicOps.ManagementModel.VirtualMachineProperty"
PS > $p
Id             : 0
PropertyName   :
PropertyValue  :
IsHidden       : False
IsRuntime      : False
IsEncrypted    : False
VirtualMachine :

All of this can then be used inside a vCAC workflow and a PoSH script that can be invoked via InvokePowerShell as described in “Powershell Scripting from vCAC Workflows (Southbound)” (make sure you read the comments to that post to make the example work).

One side note about how to use the object. Most entities are “linked” together. So if you want to add a new attribute to a property you have to create an PropertyAttribute object and the link it to its base Property object via “SetLink()”. When accessing objects (eg via $mgmtContext.GlobalProperties) you have to “detach” the objects via “Detach()” after use or you get strange results when the objects have been changed in the background.

Trackbacks

  1. […] recently wrote about on how to use the mgmtContext from vCAC so that you can use it outside the script/file […]

  2. […] there is help … As I described in an earlier post all vCAC workflows get a so called ‘mgmtContext‘ which in .NET reality is a ‘DynamicOps.ManagementModel.ManagementModelEntities’ […]

  3. […] working with the vCAC MgmtContext from within PowerShell or whatever other .NET language you will probably have noticed two properies […]

  4. […] ModelManagerEntities object. For more information you can check some of my earlier blog posts like Investigating the vCAC 5.2 mgmtContext. When querying entities from this object you have the easy option to use a PowerShell expression […]

  5. […] certainly work with the ManagementModelEntitesClient or the MgmtContext for short. Have a look at my introduction to it in this blog post. But there is actually more in vCAC than just that. Out of the box vCAC ships with these […]

  6. […] the well used ManagementContext vCAC also has some SOAP services for basic infrastructure communication and provisioning. With the […]

  7. […] there you take the usual approach as already described in my post about the vCAC Management Context (as the actually use the same underlying technology (‘Microsoft ADO.NET Data […]

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s

%d bloggers like this:
