While I was working on a feature for an Enterprise Architect (EA) Add-In I had to get information about the scripts, which are stored in EA. The scripts are stored in table t_script and the information I needed was Name and Language. Both properties reside inside the Notes column.

Selecting Notes of table t_script with the following SQL query in SQL Scratch Pad of EA returns the Notes of the scripts.

SELECT [Notes]
FROM [t_script]

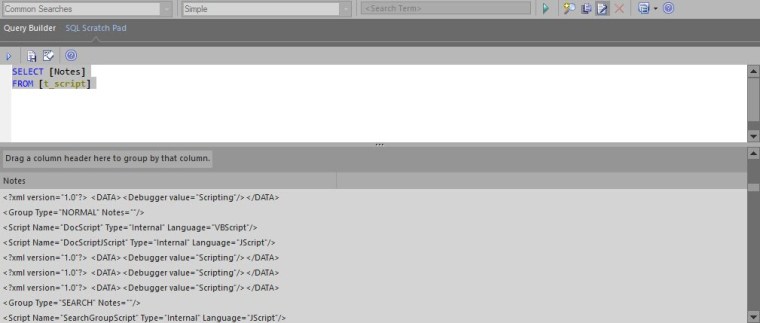

Select Script Notes

As you can see the XML structure of the values in the Notes column is different. The XML structure depends on the type of entry. I identified three entry types:

  • Custom scripts
  • Script groups
  • Built-in scripts

In my case I’m only interested in the custom scripts, so I changed the SQL query as follows. For built-in scripts the ScriptCategory is set to ScriptDebugging and for script groups the ScriptAuthor is NULL.

SELECT [Notes]
FROM [t_script]
WHERE [ScriptCategory] <> 'ScriptDebugging'
AND [ScriptAuthor] IS NOT NULL

The XML structure of custom script notes is always the same.

<Script Name="DocScript" Type="Internal" Language="VBScript"/>

Based on that I implemented the data class for custom script notes.

/**
 * Copyright 2020 d-fens GmbH
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

using System.Xml.Serialization;

namespace biz.dfch.CS.EA.Example
{
    [XmlRoot("Script")]
    public class ScriptNotesData : XmlSerialiserBase
    {
        [XmlAttribute]
        public string Name { get; set; }

        [XmlAttribute]
        public string Type { get; set; }

        [XmlAttribute]
        public string Language { get; set; }
    }
}

The ScriptNoteData class extends the XmlSerialiserBase class, which provides methods for serialisation and deserialisation using XmlSerializer.

/**
 * Copyright 2018 d-fens GmbH
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

using System.IO;
using System.Text;
using System.Xml;
using System.Xml.Serialization;

namespace biz.dfch.CS.EA.Example
{
    public abstract class XmlSerialiserBase
    {
        protected const string XMLNS_FIELDS = " xmlns=\"Fields\"";
        protected const string XMLNS_ROWS = " xmlns=\"Rows\"";

        public virtual string Serialise()
        {
            string result;

            var emptyNamespaces = new XmlSerializerNamespaces(new[] { XmlQualifiedName.Empty });
            var serializer = new XmlSerializer(GetType());
            var settings = new XmlWriterSettings
            {
                Indent = false,
                OmitXmlDeclaration = true,
                Encoding = Encoding.UTF8,
            };

            using (var stream = new StringWriter())
            using (var writer = XmlWriter.Create(stream, settings))
            {
                serializer.Serialize(writer, this, emptyNamespaces);
                result = stream.ToString();
            }

            return result
                .Replace(XMLNS_FIELDS, string.Empty)
                .Replace(XMLNS_ROWS, string.Empty);
        }

        public static T Deserialise<T>(string xml)
            where T : XmlSerialiserBase
        {
            var serializer = new XmlSerializer(typeof(T));

            using (var stream = new StringReader(xml))
            {
                var result = (T) serializer.Deserialize(stream);

                return result;
            }
        }
    }
}

A single custom script note result can then be deserialised as follows.

var result = XmlSerialiserBase.Deserialise<ScriptNotesData>(scriptNotesEntry);
